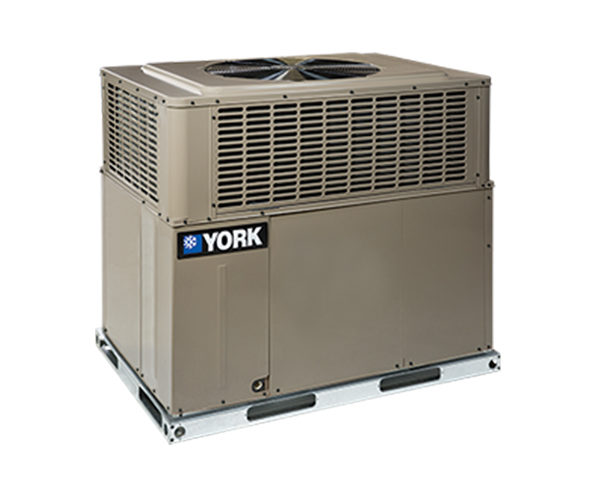

3 Ton York PCE4A3621 14 SEER Package Unit

Description

The York PCE Package Air Conditioners are designed for outdoor installation. Only utility and duct connections are required at the point of installation. Enjoy more living space with compact LX Series Residential Package Equipment. All cooling and heating functions fit into one outdoor cabinet, providing additional space indoors. Low-noise fans and vibration-reducing technology reduce outdoor sound levels to keep your neighborhood quiet, while precision controls lets you adjust temperature settings conveniently and accurately.

Enjoy more living space with compact LX Series Residential Package Equipment. All cooling and heating functions fit into one outdoor cabinet, providing additional space indoors. Low-noise fans and vibration-reducing technology reduce outdoor sound levels to keep your neighborhood quiet, while precision controls lets you adjust temperature settings conveniently and accurately.

Standard Features:

• Operating Efficiency – All PCE4 air conditioner models are rated at 14.0 SEER and 11.0 EER for cooling operation.
• On Site Flexibility – All model sizes use a compact design cabinet in one of two footprints. This provides installer flexibility for placing the proper capacity unit on curbs or pads with the smallest footprint after the internal load has been determined. Field convertible duct connections from side shot to down shot allows the installer to have greater flexibility with less inventory.
• Lower Installation Cost – Installation time and costs are reduced by easy power and control wiring connections. The small base dimension means less space is required on the ground or roof. All units are completely wired, charged withR-410A refrigerant and tested prior to shipment. Test stations using a state-of-the-art computerized process system are used to insure product quality. Refrigerant charge and component part numbers are verified via computers during assembly. Vital run test statistics such as system pressure, motor currents, air velocity and temperature, unit vibration, and gas system safeties are monitored and recorded by the system to insure unit performance. Equal size side supply and return duct connections allow easy connection of ducts to match low crawl spaces without transition pieces.
• Utility Connections Made Easy – Electric utility access provided through the bottom or the side of the unit.
• Utility connection scan be made quickly and with a minimum amount of field labor. A field supplied and field installed electrical disconnect switch must be installed.
• Convertible Airflow Design – The bottom duct openings are covered when they leave the factory, ready to be used for aside supply/side return application. If a bottom supply/bottom return application is desired, simply remove the two panels from the bottom of the unit and place them in the side supply/side return duct openings.
• No panel cutting is required and no accessory panel is necessary. Convertible airflow design allows maximum field flexibility and minimum inventory.
• Condensate Pan – A corrosion-resistant, long-lasting, water tight pan is positioned below the indoor coil to collect and drain all condensate, preventing build-up of stagnant condensate. The condensate pan conforms to
• ASHRAE 62-89 standards (Ventilation for Acceptable Indoor Air Quality).
• Condensate Drain – The 3/4 inch NPT female connection is rigidly mounted to assure proper fit and leak tight seal.
• Durable Finish – The cabinet is made of G90 galvanized steel with a powder paint coating for appearance and protection. The pre-treated galvanized steel provides a better paint to steel bond, which resists corrosion and rust creep. Powder paint finish insure less fading when exposed to sunlight, and provides superior corrosion resistance (1000 hour salt spray tested).
